Hybrid Racing Universal K-Series Swap Conversion Wiring Harness

HYB-CWH-01-99

MSRP Price$215.99
/
Shipping calculated at checkout.

  • Shipping calculated at checkout
  • In stock, ready to ship
  • Backorder. Contact us for availability.

At LMTLS Auto, we prioritize getting your orders to you in a timely and safe manner. We also understand that accidents can happen during transit, which is why we’ve partnered with Navidium Protection to offer added peace of mind with every purchase.

Please allow up to 48 hours to process and ship your IN-STOCK ORDER. Orders for items that are not in-stock can take much longer. If you have a time sensitive shipment please email us to ensure there are no delays.

Free shipping promotions do not apply to orders shipping to:
Hawaii, Alaska, Puerto Rico and U.S. outlying territories (Guam, Virgin Islands, Etc.), International orders and limited other occasions.

We reserve the right to cancel any order in which the customer does not want to pay the shipping cost difference.

INTERNATIONAL SHIPMENTS
International orders are shipped via USPS FedEx or DHL.

All international shipments may be subject to customs fees, import duties and taxes. These fees are not integrated into the item pricing or shipping charges. These fees are paid by the buyer, upon arrival to its international destination. Any charges associated with the importation of products purchased from LMTLS Auto are the responsibility of the buyer. We do not pre-pay any customs fees, duties or taxes when the shipment arrives to the international destination. Any costs resulting from the refusal to import a product purchased through LMTLS Auto may result in additional charges.
Navidium Protection

We’ve partnered with Navidium Protection to ensure your order is covered during transit. With Navidium, you’ll receive protection for lost, damaged, or stolen items during the shipping process.

We offer Navidium Protection to ensure your order is safe from damage, loss, or theft during transit. The cost of Navidium Protection will be automatically added to your cart during checkout.

  • Coverage with Navidium Protection:

Damage: If your item is damaged in transit, Navidium will assist with a replacement or refund.

Lost Packages: In case your package is lost, Navidium will help you recover it or provide a replacement.

Theft: If your package is stolen after delivery, Navidium Protection will help you file a claim for compensation.

  • Opting Out of Navidium Protection:
    At checkout, you can choose to opt-out of Navidium Protection by unchecking the box for shipping protection. Please note that by opting out, you will not be eligible for claims in the event of a lost, damaged, or stolen package.

Please inspect items immediately when received. Read conditions below carefully before inquiring about returns and exchanges.

Returns:

  • All returns are subject to a 20% re-stocking fee. The restocking fee covers the cost of our order processing and restocking process. If you wish to retain store credit, the restocking fee may be waived. Please inquire for details.
  • All electronics returned need to be sealed and in their original packaging and the tamper seal intact in order to receive a credit, exchange, or refund.
  • Items you wish to return MUST be approved prior to your return.  All return inquiries must be sent to us within 14 days of receiving your order.
  • Approved Returns MUST be sent back to us within 30 days of approval.
  • Returned items must be in brand new condition in original packaging.
  • Shipping, handling, and transaction fees are non-refundable.
  • No returns, cancellations, or refunds are allowed on special order items.
  • Once items have been returned to us, and the condition has been inspected and approved, a refund will be issued. Approved refunds are issued within 2-3 days.

Exchanges:

  • Please contact us if inquiring about an exchange.
  • Exchanges are subject to second shipping charges unless there was a mistake made on the order. If a mistake was made by LMTLS Auto, we will provide a return shipping label for you to use to make the exchange as seamless as possible.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Who should purchase the Universal Harness?

The Hybrid Racing Universal K-Series Swap Conversion Wiring Harness is designed for those people who have decided to install a K-Series engine into a non-honda chassis or a chassis where a standard plug and play conversion harness is not available. (such as Preludes, DA Integras, Accords, and older Honda chassis)

This harness has also been used in custom open wheel cars such as the Ariel Atom, RCR Superlite Roadster, Sandrails, and 3 wheeled Trikes. It has also been used on Mini Coopers, Toyota MR-2s, Lotus Elises as well as full blown tubed frame race cars.

If your engine of choice is the K-Series motor and plan to use the OEM K-Series ECU than we can help you get it started.

What is included with the race harness?

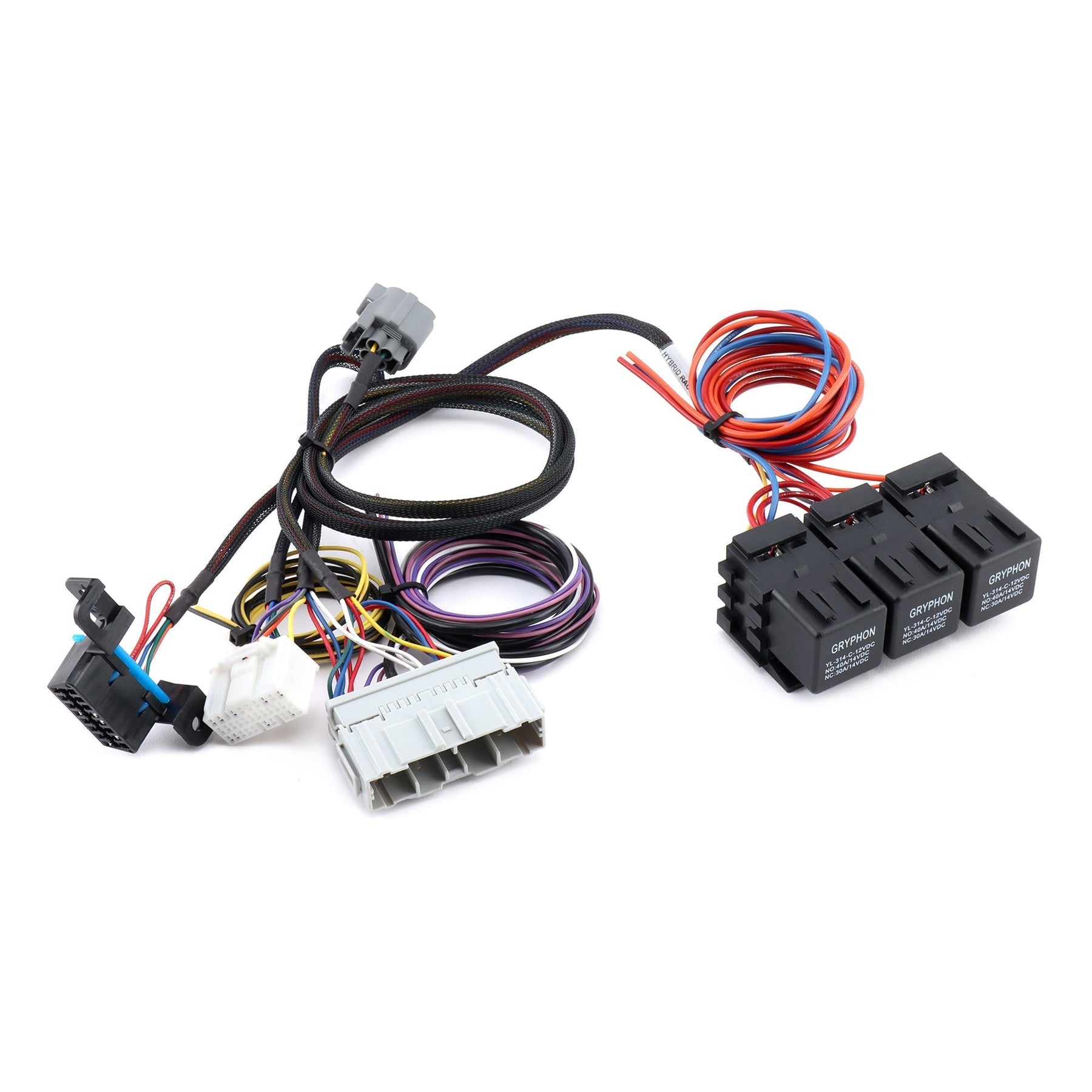

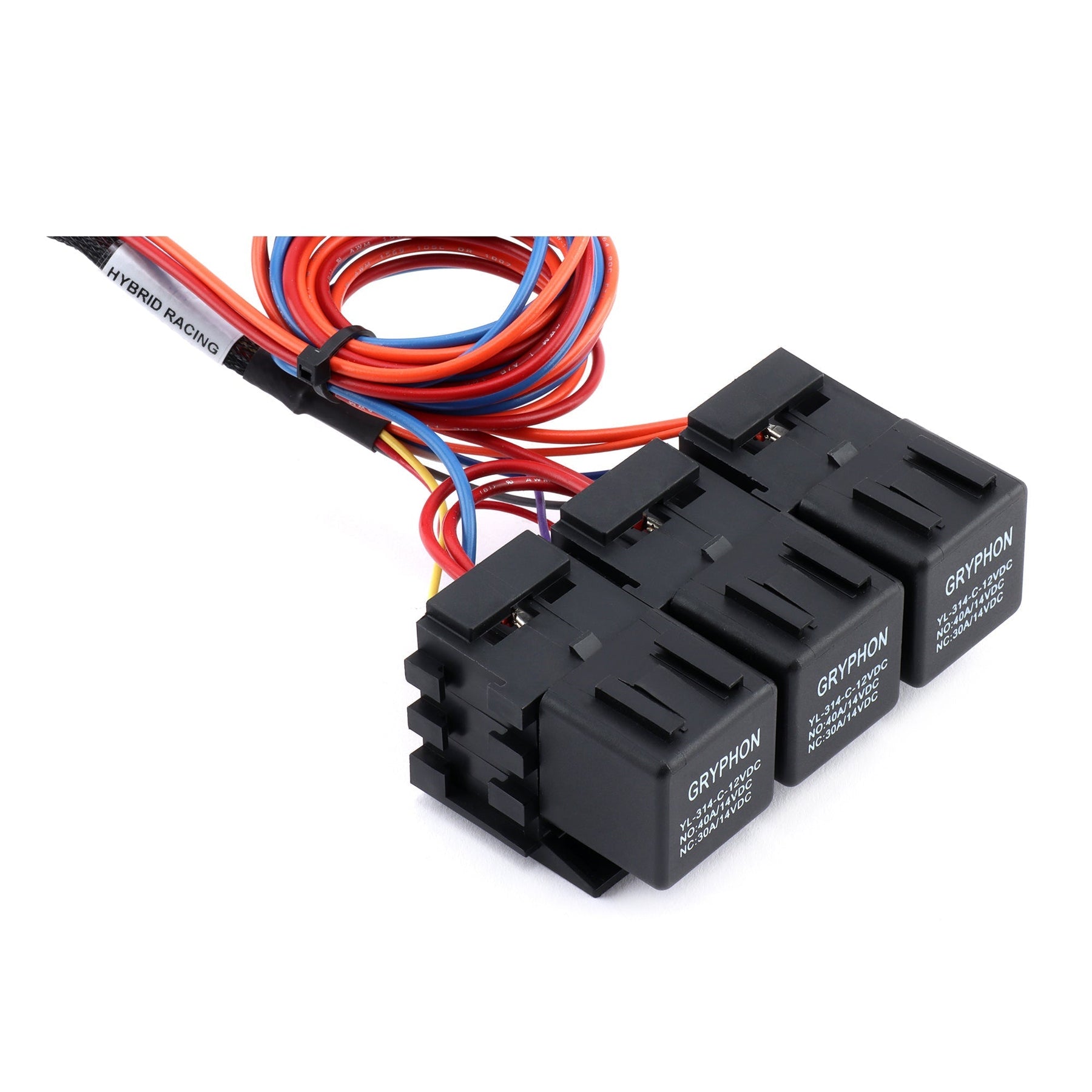

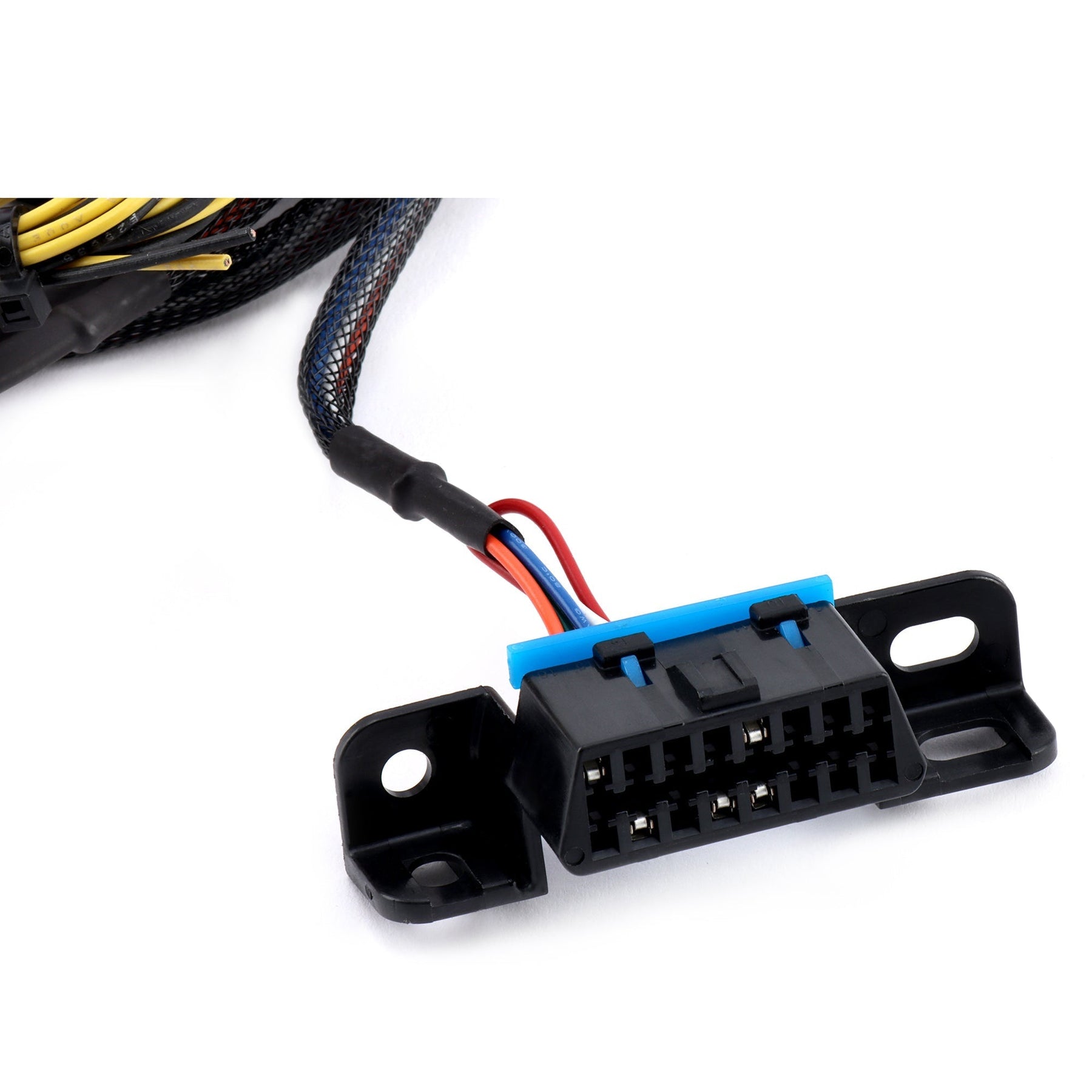

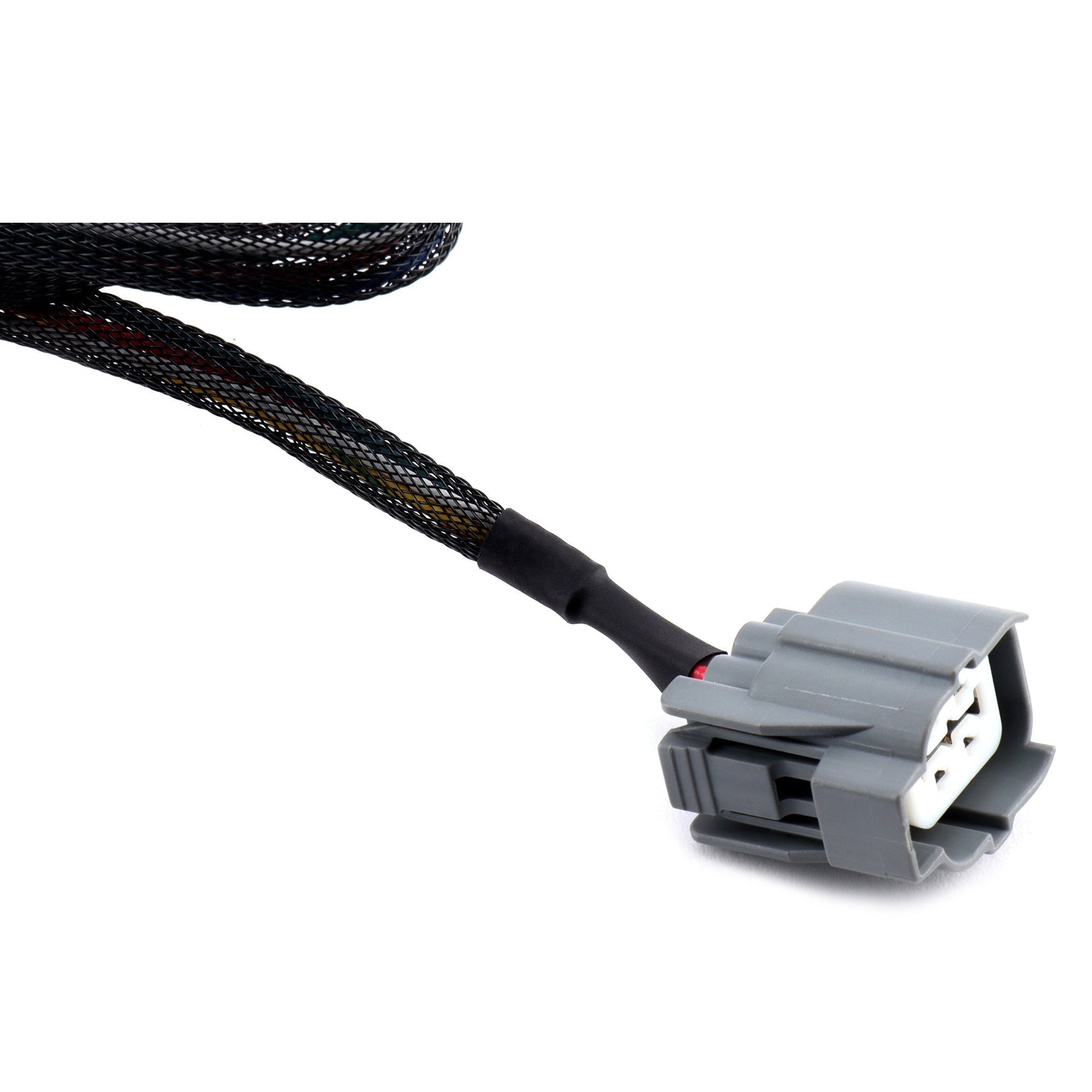

The race harness includes a fuel pump relay, a main relay and a primary oxygen sensor relay. The harness comes wired with the provisions for the OEM K-Series 02-04 Wideband o2 sensor and an OBD2 port. This harness has outputs including, tachometer, speedometer, low oil pressure warning, malfunction indicator, fan control, fuel pump control and for the starter relay. You will need to supply the harness with a constant 12v and switch 12v source.

With over ten years of K-Series swap wiring experience, the Hybrid Racing Conversion Harness is the most widely used and reliable K-Swap conversion harness on the market. This conversion harnesses powers thousands of K-Swaps all over the world!

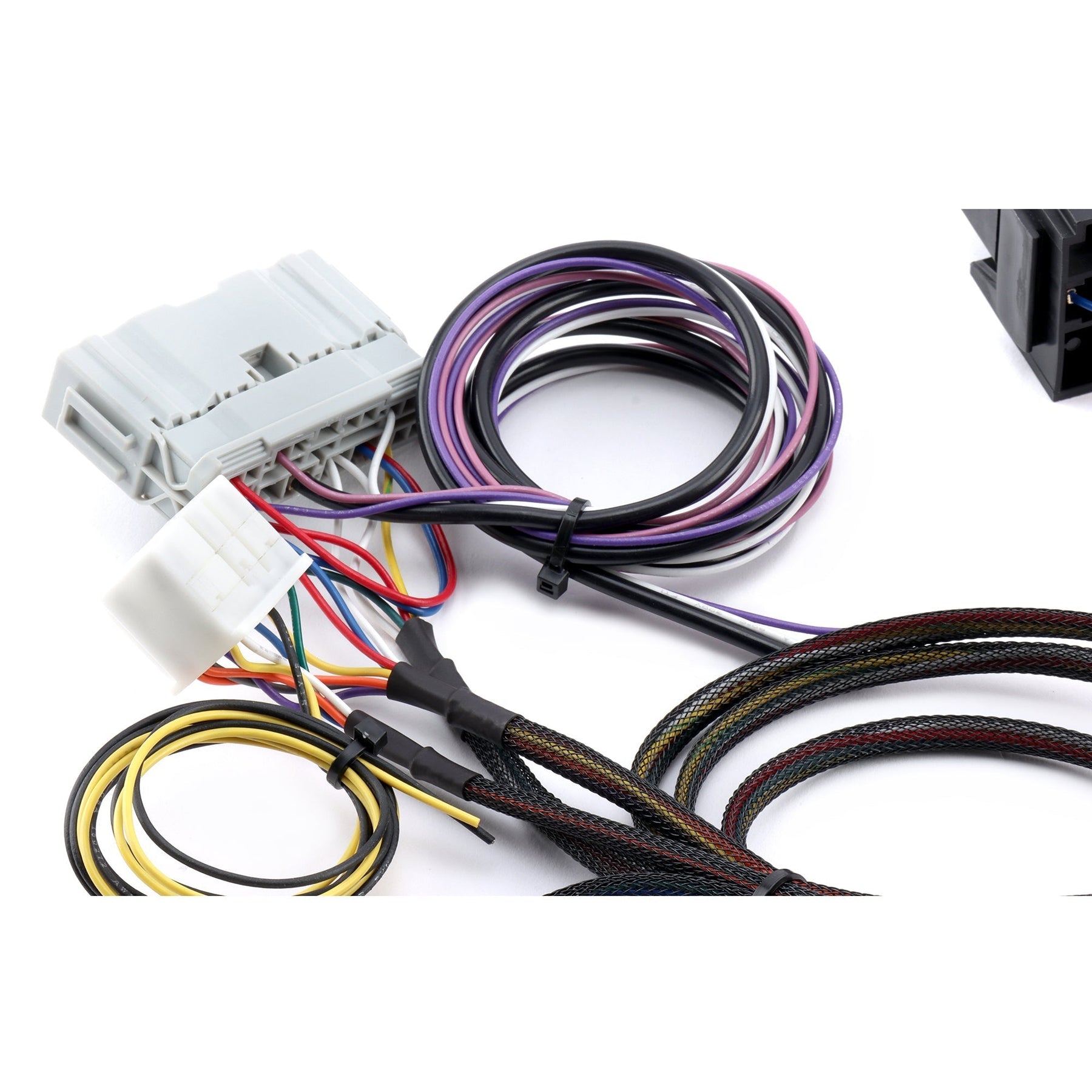

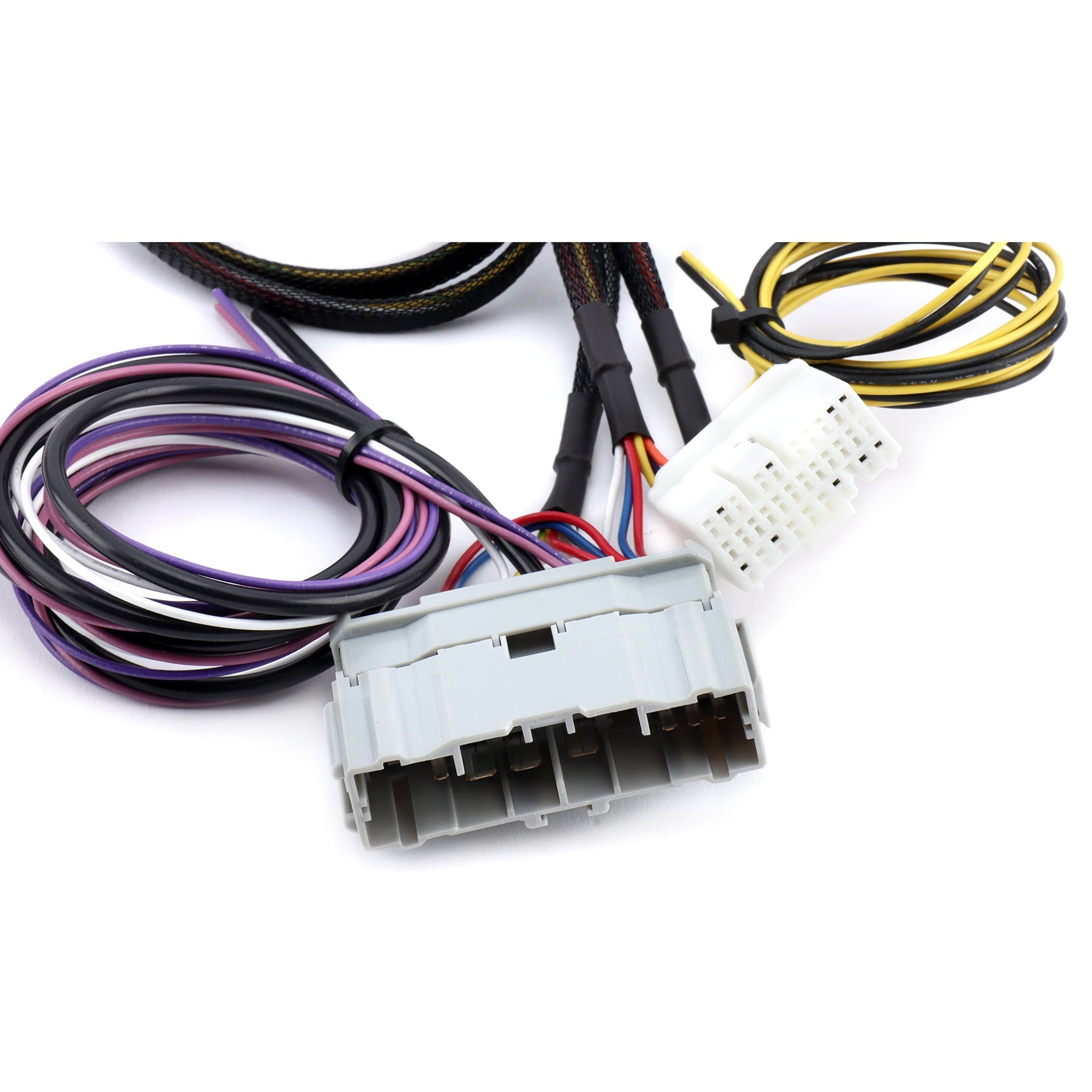

The K-Swap harness interfaces with your factory dash harness, your OEM K-Series engine harness and your K-Series ECU allowing for a simple plug and play K-Swap.

What engine harness does the Hybrid Racing conversion harness work with?

  • This harness works with all USDM / JDM 02-04 wiring harnesses including, K20A, K20A2, K20A3.
  • This harness is wired to use the factory wideband O2 sensor so European customers using the UKDM K20A/K20A2 wiring harness will need to convert the harness to use the narrowband type sensor.
  • This harness does NOT work with any 05-06 OR K24 engine wiring harnesses and ECU.
What type of connectors and pins do you use?

When we construct a Hybrid Racing harness we utilize brand new connectors, terminals and wire sourced from the same company that Honda utilizes for their connectors. These connectors are ordered in bulk from Japan and ensure that you get all new parts. In addition, all new connectors decrease the chance for errors in the harness as we do not solder any of the joints. Every harness is machine made and human checked so they are issue free.

What if I have questions or problems?

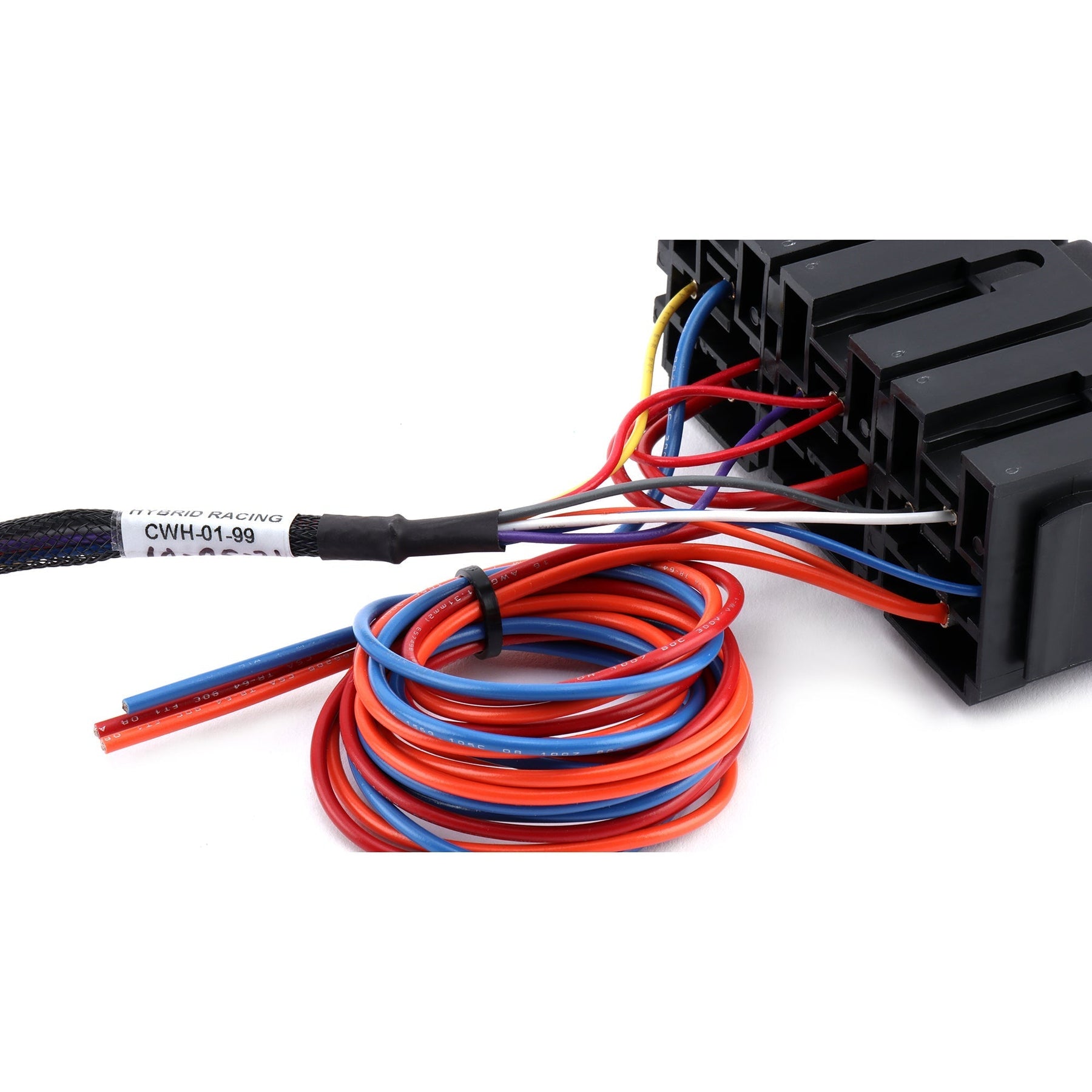

To ensure a trouble-free install all of the wires are labeled and neatly packaged. The most valuable thing you get when you purchase a Hybrid Racing harness is full tech support. This tech support extends beyond your harness and includes help with anything associate with your swap. If you have any problems at all with the swap just give us a call and a tech will get you the information you need. It’s like having a buddy down the street who has already done hundreds of K swaps!
