HKS Intercooler Kit with Piping for 2023+ Honda Civic Type R FL5
HKS Intercooler Kit with Piping for 2023+ Honda Civic Type R FL5 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at LMTLS Auto
Delivery and Shipping
Delivery and Shipping
At LMTLS Auto, we prioritize getting your orders to you in a timely and safe manner. We also understand that accidents can happen during transit, which is why we’ve partnered with Navidium Protection to offer added peace of mind with every purchase.
Please allow up to 48 hours to process and ship your IN-STOCK ORDER. Orders for items that are not in-stock can take much longer. If you have a time sensitive shipment please email us to ensure there are no delays.
Free shipping promotions do not apply to orders shipping to:
Hawaii, Alaska, Puerto Rico and U.S. outlying territories (Guam, Virgin Islands, Etc.), International orders and limited other occasions.
We reserve the right to cancel any order in which the customer does not want to pay the shipping cost difference.
INTERNATIONAL SHIPMENTS
International orders are shipped via USPS FedEx or DHL.
All international shipments may be subject to customs fees, import duties and taxes. These fees are not integrated into the item pricing or shipping charges. These fees are paid by the buyer, upon arrival to its international destination. Any charges associated with the importation of products purchased from LMTLS Auto are the responsibility of the buyer. We do not pre-pay any customs fees, duties or taxes when the shipment arrives to the international destination. Any costs resulting from the refusal to import a product purchased through LMTLS Auto may result in additional charges.

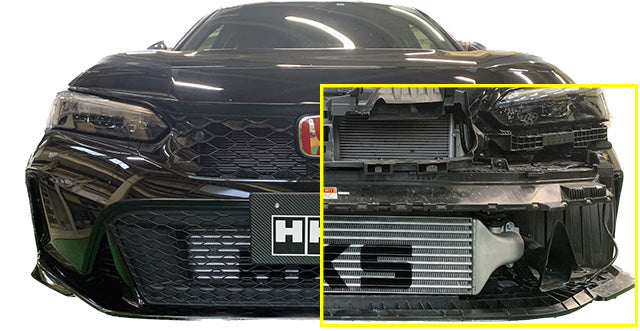

NOTE: To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required. To install the piping, it is necessary to shave the bracket on the vehicle body.
Features
Intercooler Core:
- A huge 22.4% increase in core's area leads to immense improvement in cooling.
- The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
- The core is designed to be also installed with OEM piping.

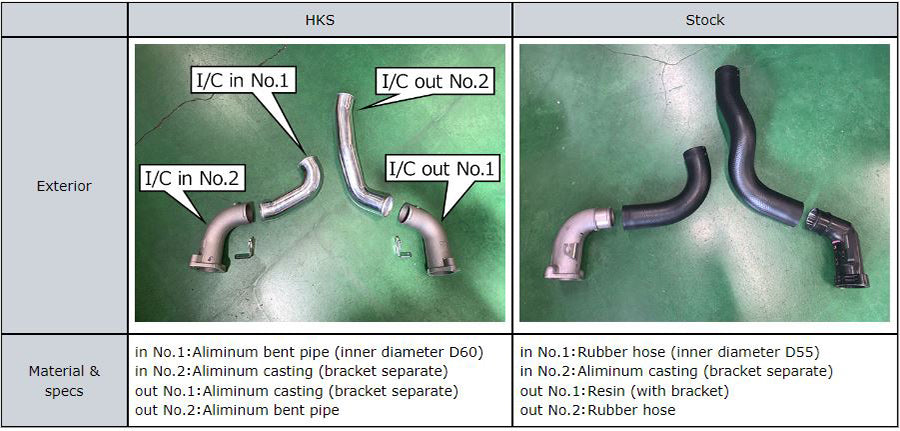

Piping Kit:
- Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
- The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.
- The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.

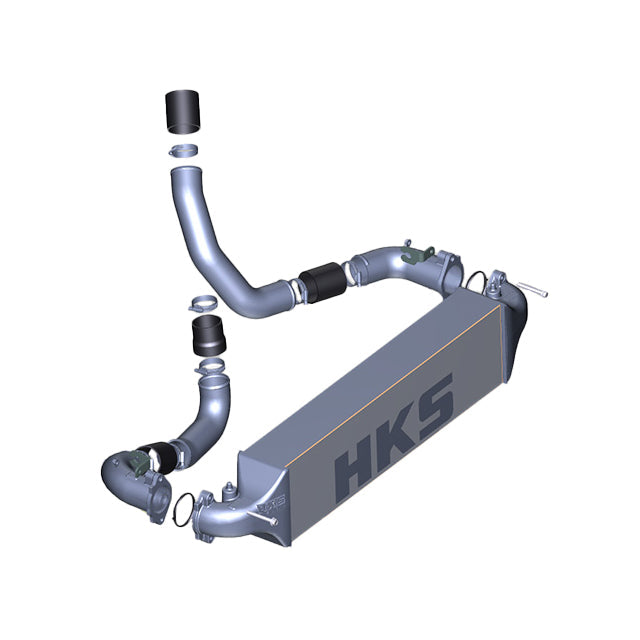

Included:
- Intercooler Core
- Masking Sheet for Logo Spray
- Aluminum Bent Pipe (IN/OUT)
- Cast Pipe (IN/OUT)
- Silicone Hose
- Hose Band
- Bracket (IN/OUT)
- Special Bolts and Nuts

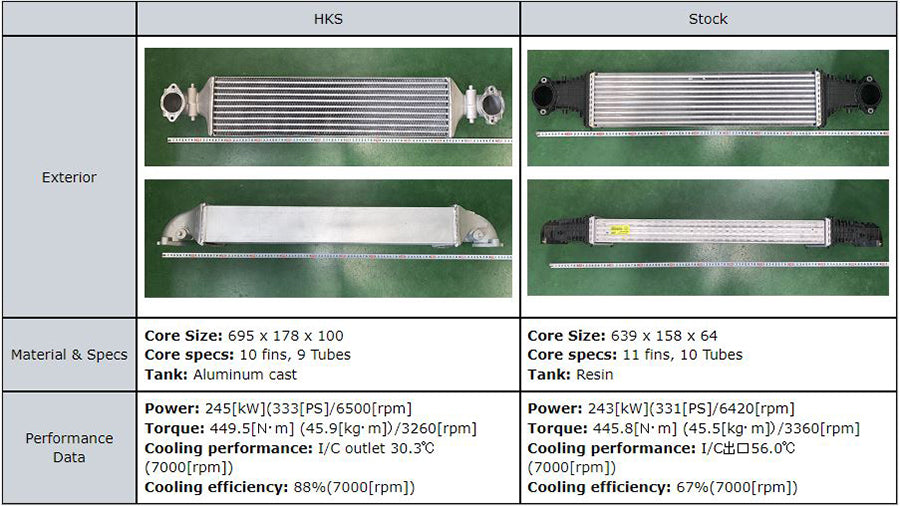

Core Size Comparison vs OEM:
- Core Size: 695 x 178 x 100 (OEM 639 x 158 x 64)
- Core Specs: 10 Fins, 9 Tubes (OEM 11 Fins, 10 Tubes)
- Tank: Aluminum Cast (OEM Resin)

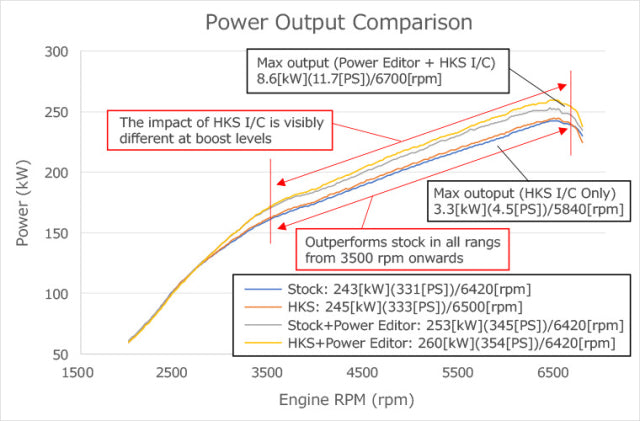

- Power: 245 kW (333 PS / 6500 rpm (OEM 243 kW (331 PS / 6420 rpm)

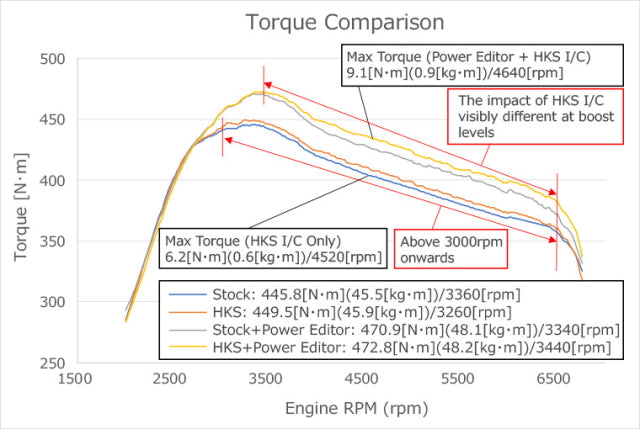

- Torque: 449.5 Nm (45.9 kg/m) / 3260 rpm (OEM 445.8 Nm (45.5 kg/m) / 3360 rpm)

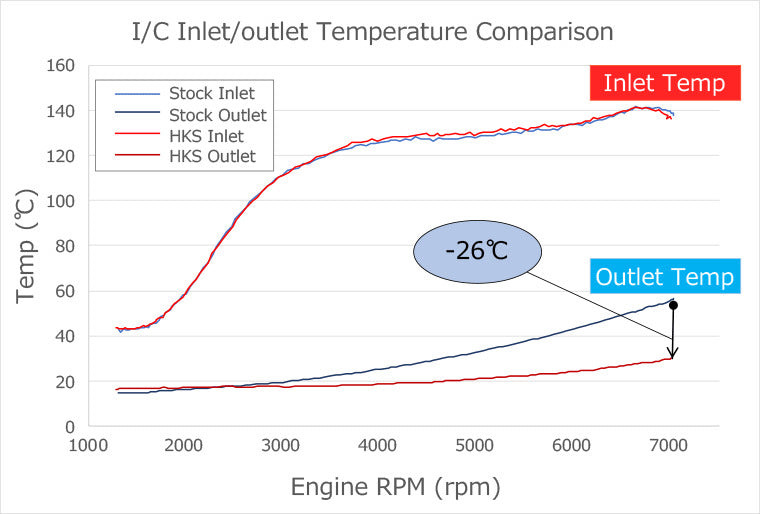

- Cooling Performance: I/C Outlet 30.3 Degrees Celsius (7000 rpm) (OEM I/C Outlet 56.0 Degrees Celsius (7000 rpm)
- Cooling Efficiency: 88% (7000 rpm) (OEM 67% (7000 rpm)
