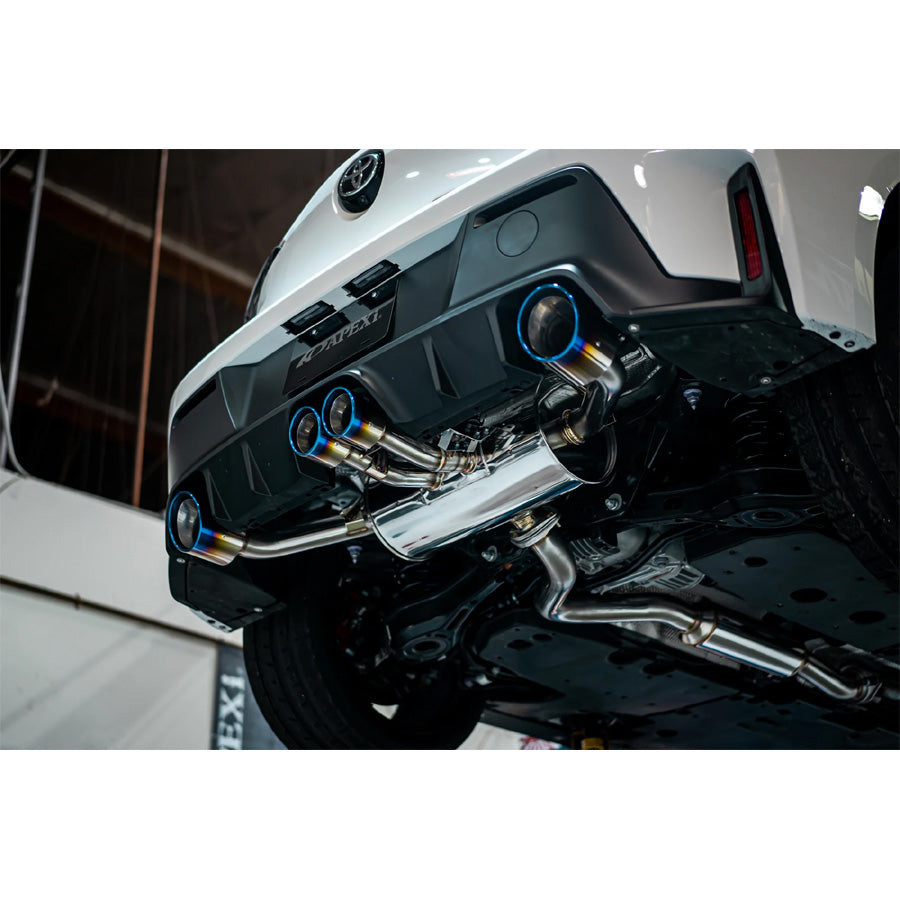

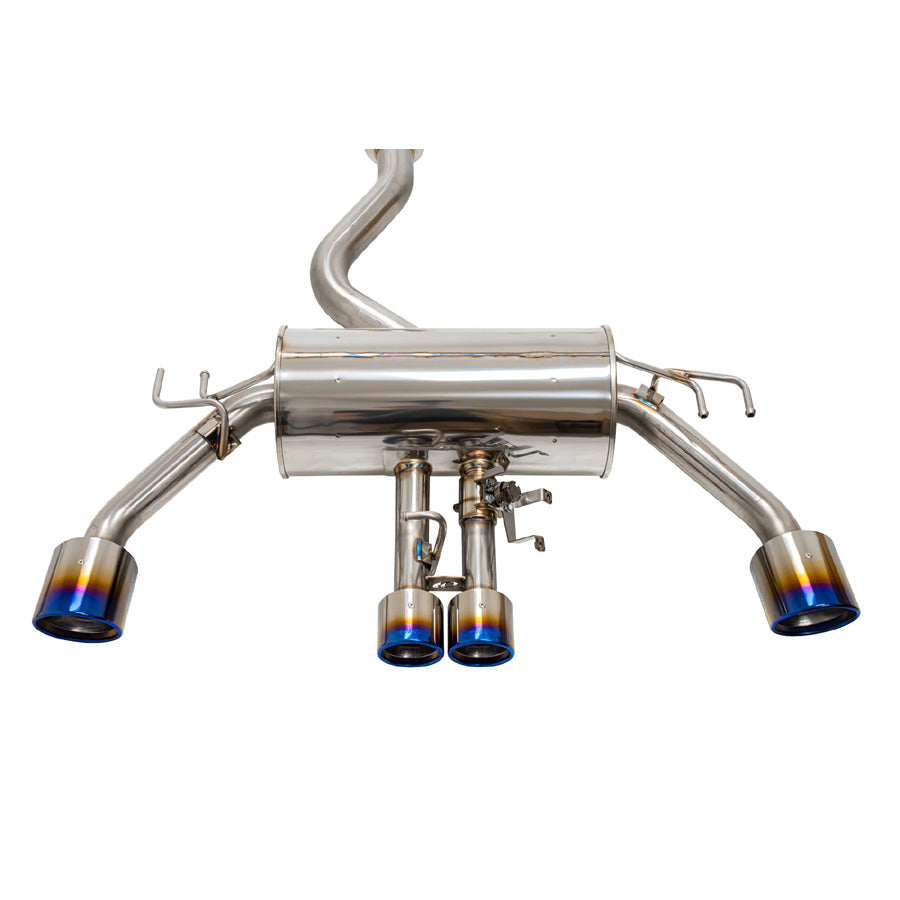

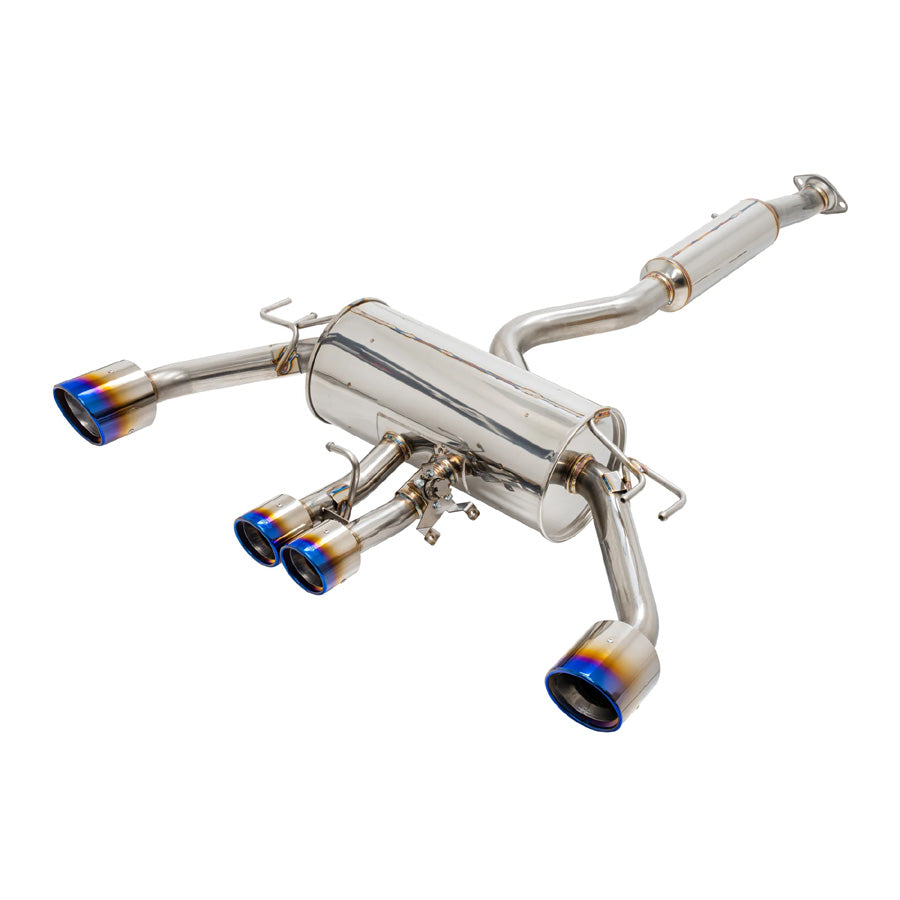

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
- Made in Japan
Specifications:
- Bolt-On: Yes
- Part Number: 164-KT23
- Make: Toyota
- Model: GR Corolla
- Body Style: 5-Door Hatchback
- Engine: G16E-GTS
- Chassis: MZEAZ12
- Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
- Piping Diameter: 70mm - 60.5mm (Outer Left/Right) x 2 Piping / 70mm - 50.8mm (Center Dual) x 2 Piping
- Tip Diameter: Two Center Dual Tips - 93mm / Two Outer Tips - 123mm
- Pieces: 2
- Exhaust Tip Style: Titanium Round - Dual wall rolled, Angle cut (Riveted)
- Piping Material: SUS304 Stainless Steel
- Muffler Material: SUS304 Stainless Steel
- Tip Material: TP270 Grade - Titanium (Heat Treated Gradient Tips)
- Special Notes: Integrated Valved compatible with Factory OE Electronic Module
