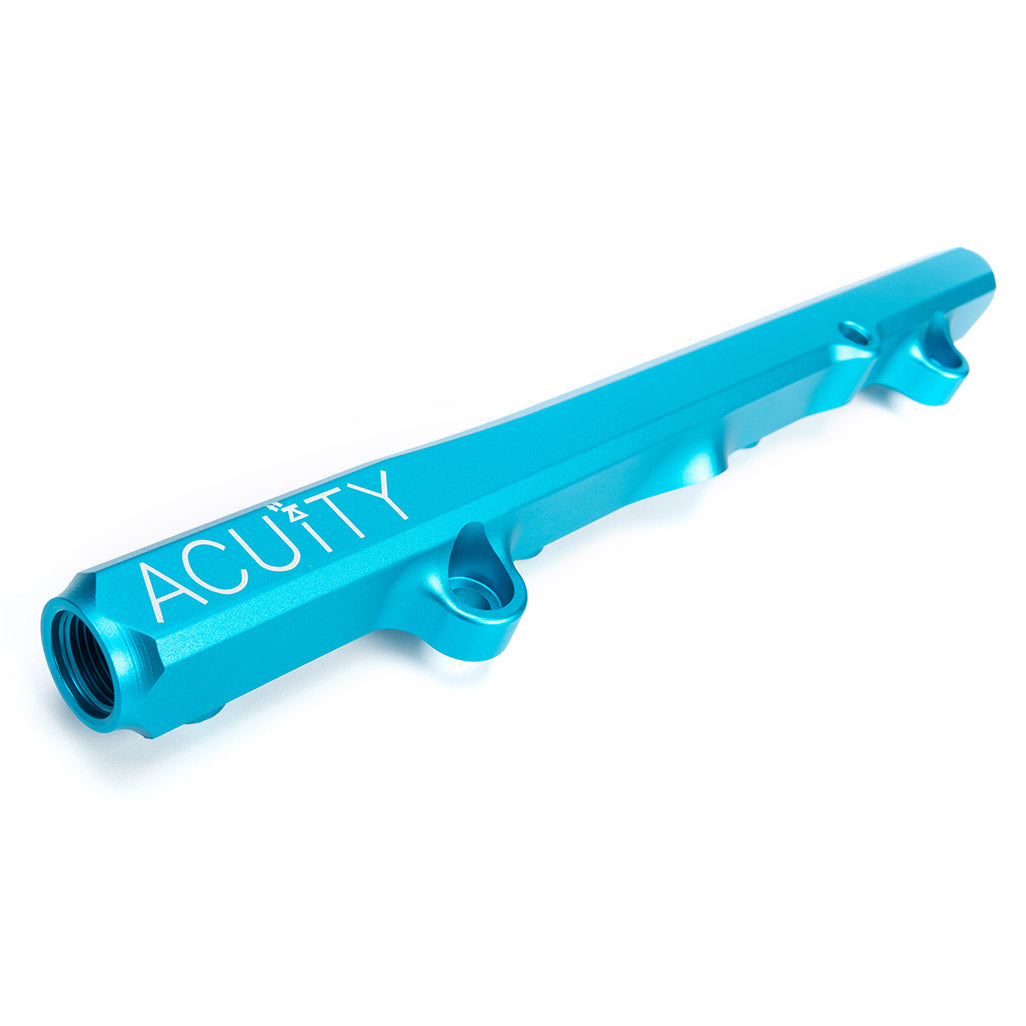

ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish
ACUITY K-Series Fuel Rail in Satin Teal Finish

ACUITY K-Series Fuel Rail in Satin Teal Finish

1913-TEL

MSRP Price$178.00
/
Shipping calculated at checkout.

  • Shipping calculated at checkout
  • In stock, ready to ship
  • Backorder. Contact us for availability.

At LMTLS Auto, we prioritize getting your orders to you in a timely and safe manner. We also understand that accidents can happen during transit, which is why we’ve partnered with Navidium Protection to offer added peace of mind with every purchase.

Please allow up to 48 hours to process and ship your IN-STOCK ORDER. Orders for items that are not in-stock can take much longer. If you have a time sensitive shipment please email us to ensure there are no delays.

Free shipping promotions do not apply to orders shipping to:
Hawaii, Alaska, Puerto Rico and U.S. outlying territories (Guam, Virgin Islands, Etc.), International orders and limited other occasions.

We reserve the right to cancel any order in which the customer does not want to pay the shipping cost difference.

INTERNATIONAL SHIPMENTS
International orders are shipped via USPS FedEx or DHL.

All international shipments may be subject to customs fees, import duties and taxes. These fees are not integrated into the item pricing or shipping charges. These fees are paid by the buyer, upon arrival to its international destination. Any charges associated with the importation of products purchased from LMTLS Auto are the responsibility of the buyer. We do not pre-pay any customs fees, duties or taxes when the shipment arrives to the international destination. Any costs resulting from the refusal to import a product purchased through LMTLS Auto may result in additional charges.
Navidium Protection

We’ve partnered with Navidium Protection to ensure your order is covered during transit. With Navidium, you’ll receive protection for lost, damaged, or stolen items during the shipping process.

We offer Navidium Protection to ensure your order is safe from damage, loss, or theft during transit. The cost of Navidium Protection will be automatically added to your cart during checkout.

  • Coverage with Navidium Protection:

Damage: If your item is damaged in transit, Navidium will assist with a replacement or refund.

Lost Packages: In case your package is lost, Navidium will help you recover it or provide a replacement.

Theft: If your package is stolen after delivery, Navidium Protection will help you file a claim for compensation.

  • Opting Out of Navidium Protection:
    At checkout, you can choose to opt-out of Navidium Protection by unchecking the box for shipping protection. Please note that by opting out, you will not be eligible for claims in the event of a lost, damaged, or stolen package.

Please inspect items immediately when received. Read conditions below carefully before inquiring about returns and exchanges.

Returns:

  • All returns are subject to a 20% re-stocking fee. The restocking fee covers the cost of our order processing and restocking process. If you wish to retain store credit, the restocking fee may be waived. Please inquire for details.
  • All electronics returned need to be sealed and in their original packaging and the tamper seal intact in order to receive a credit, exchange, or refund.
  • Items you wish to return MUST be approved prior to your return.  All return inquiries must be sent to us within 14 days of receiving your order.
  • Approved Returns MUST be sent back to us within 30 days of approval.
  • Returned items must be in brand new condition in original packaging.
  • Shipping, handling, and transaction fees are non-refundable.
  • No returns, cancellations, or refunds are allowed on special order items.
  • Once items have been returned to us, and the condition has been inspected and approved, a refund will be issued. Approved refunds are issued within 2-3 days.

Exchanges:

  • Please contact us if inquiring about an exchange.
  • Exchanges are subject to second shipping charges unless there was a mistake made on the order. If a mistake was made by LMTLS Auto, we will provide a return shipping label for you to use to make the exchange as seamless as possible.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • 15mm (0.59") bore supports 1000+hp
  • 1/8 NPT gauge port
  • -8 ORB center-feed port for tucked fuel lines
  • -8 ORB end ports for OEM, side-feed, or return setups
  • 6061-T6 billet aluminum construction
  • Satin red anodized finish
  • Includes class 10.9 zinc-plated mounting hardware
Description

Fittings sold separately.

Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, ACUiTY's K-Series High-Flow Fuel Rail is the most versatile and refined solution available. With it's 1/8 NPT port on top, -8 o-ring boss (ORB) ports on both ends and another -8 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car (see "Fitment Info" for application-specific fitting requirements). Each rail is constructed from 6061-T6 aluminum and has a satin-texture, anodized finish with laser-etched technical info and logos.

Among the rails' other features are countersunk mounting screw holes and supplied class 10.9+ hardware to replace the OEM studs. Each rail is also supplied with a stainless steel 1/8 NPT plug in case a top-mounted fuel pressure gauge is used. The end locations for the -8 ORB ports have been specifically machined to help reduce the likelihood of wrench damage to the rail's cosmetic finish during installation. As an added bonus rarely found on aftermarket rails, the rail allows the end-user to retain the OEM injector clips if you wish, just for some added peace of mind.

Tons of possible configurations (using optional fittings, sold separately). See the "Fitment Info" tab for a list of fittings by vehicle and configuration.

Side-feed for OEM fuel lines on many vehicles:

Honda K-Series billet aluminum fuel rail in blue with quick disconnect fitting

Center-feed using a -6AN line:

Honda K-Series billet aluminum fuel rail in blue with centerfeed fitting

Return setup with -6AN line for k-swaps and high horsepower applications:

Honda K-Series billet aluminum fuel rail in blue with -6AN k-swap fittings

Return setup with -8AN line for k-swaps and very high horsepower applications:

Honda K-Series billet aluminum fuel rail in blue with -8AN k-swap fittings

Multiple fuel pressure gauge mounting options:

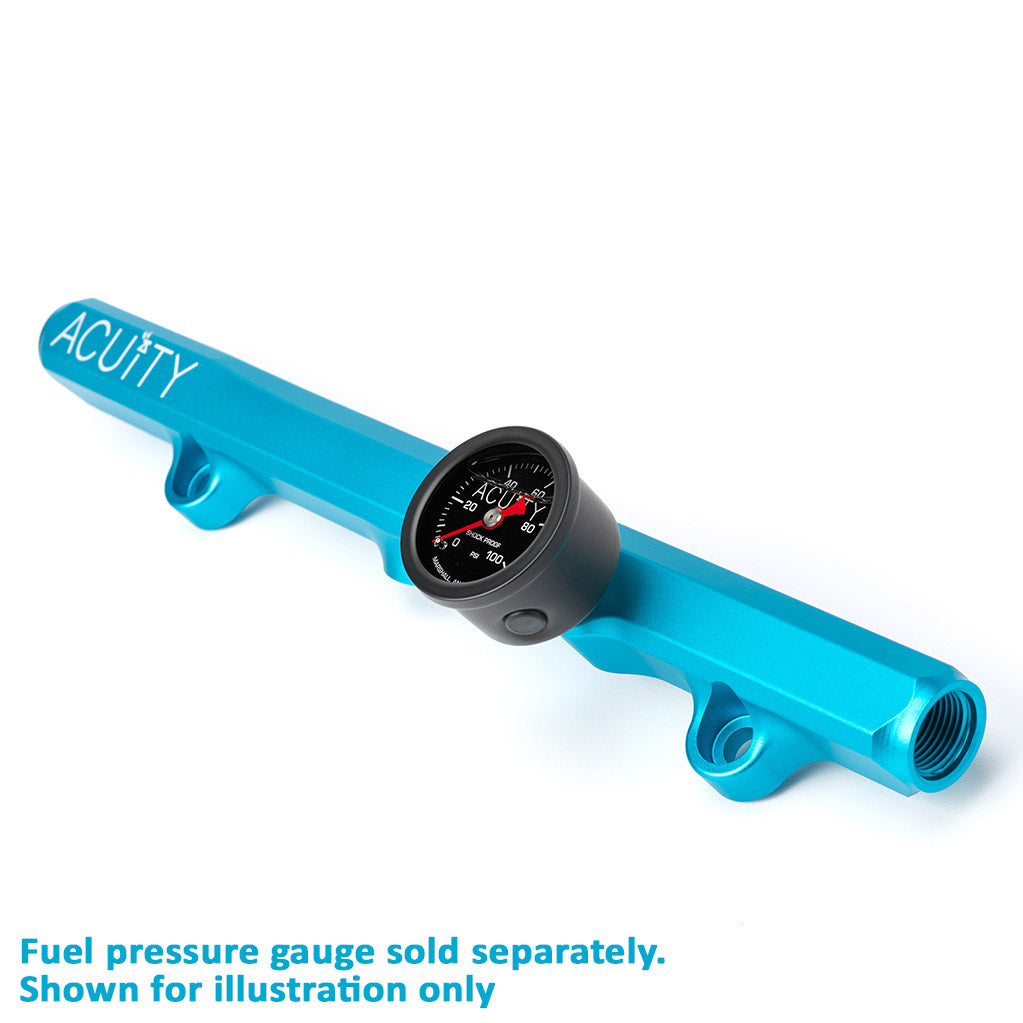

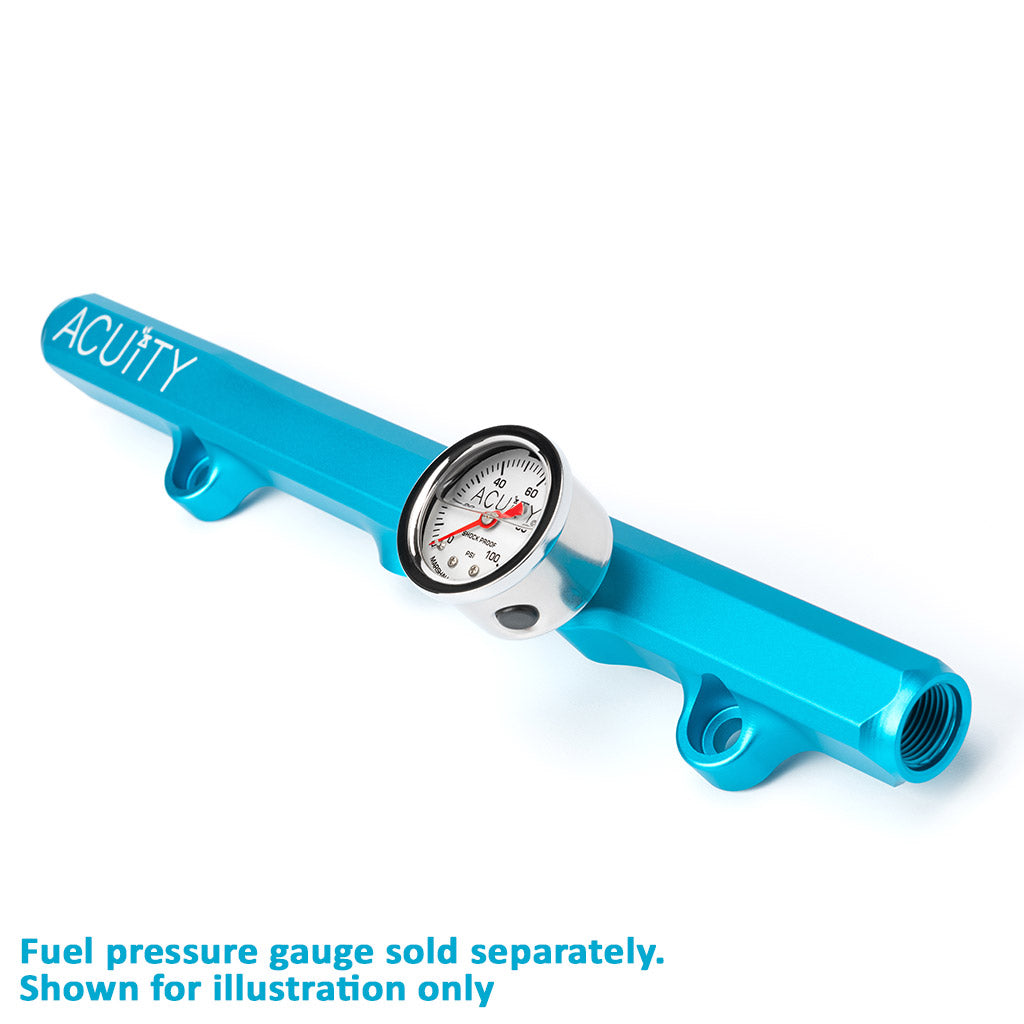

Mount a gauge on top using the 1/8 NPT Port, or plug the port if you prefer:

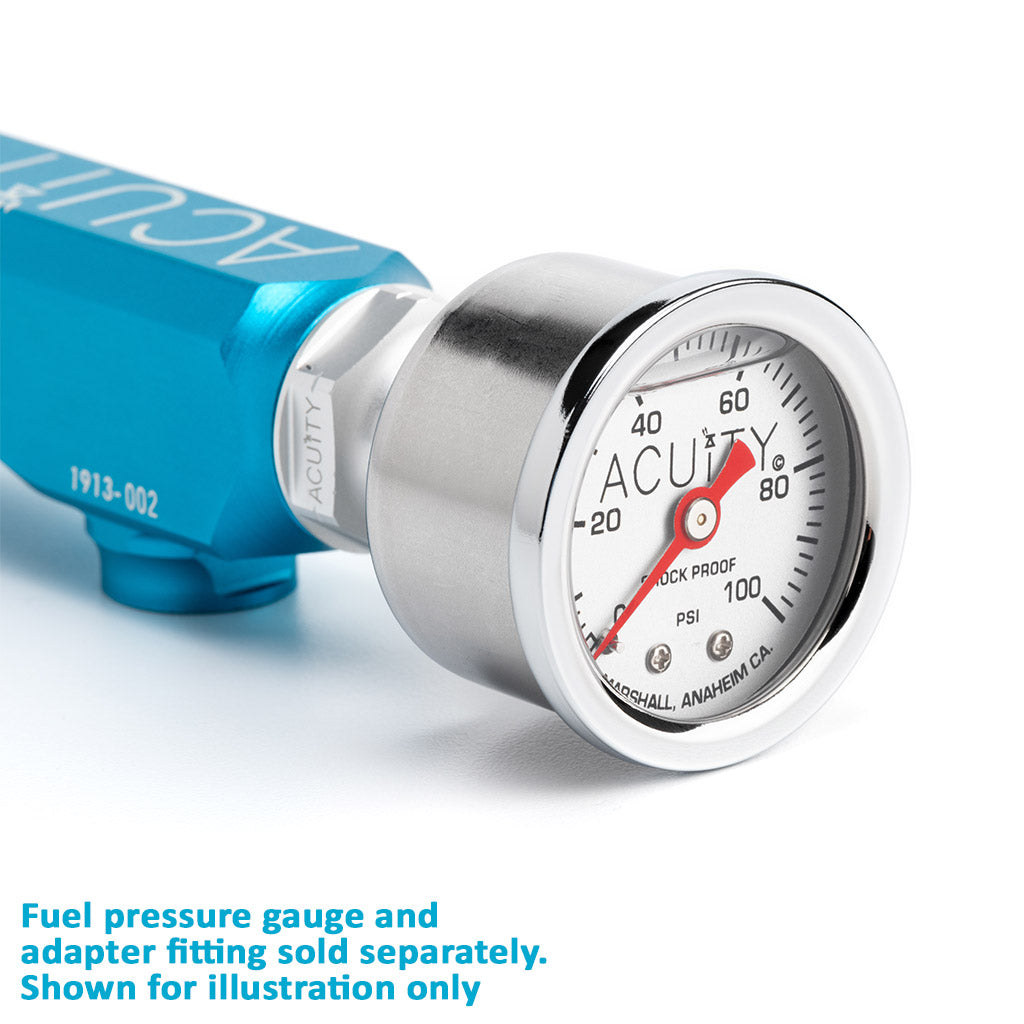

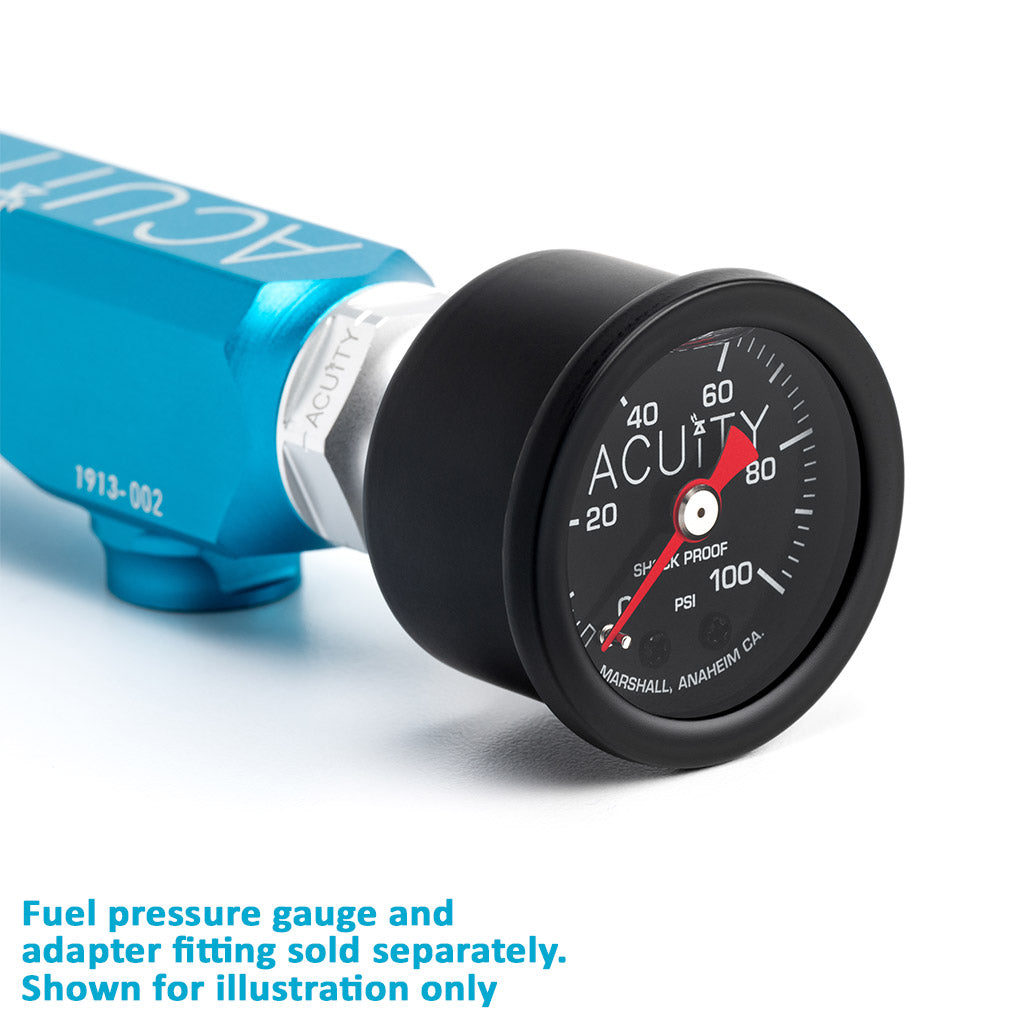

Or mount a gauge on the side of the rail using the 1913-F05 adapter fitting (sold separately):

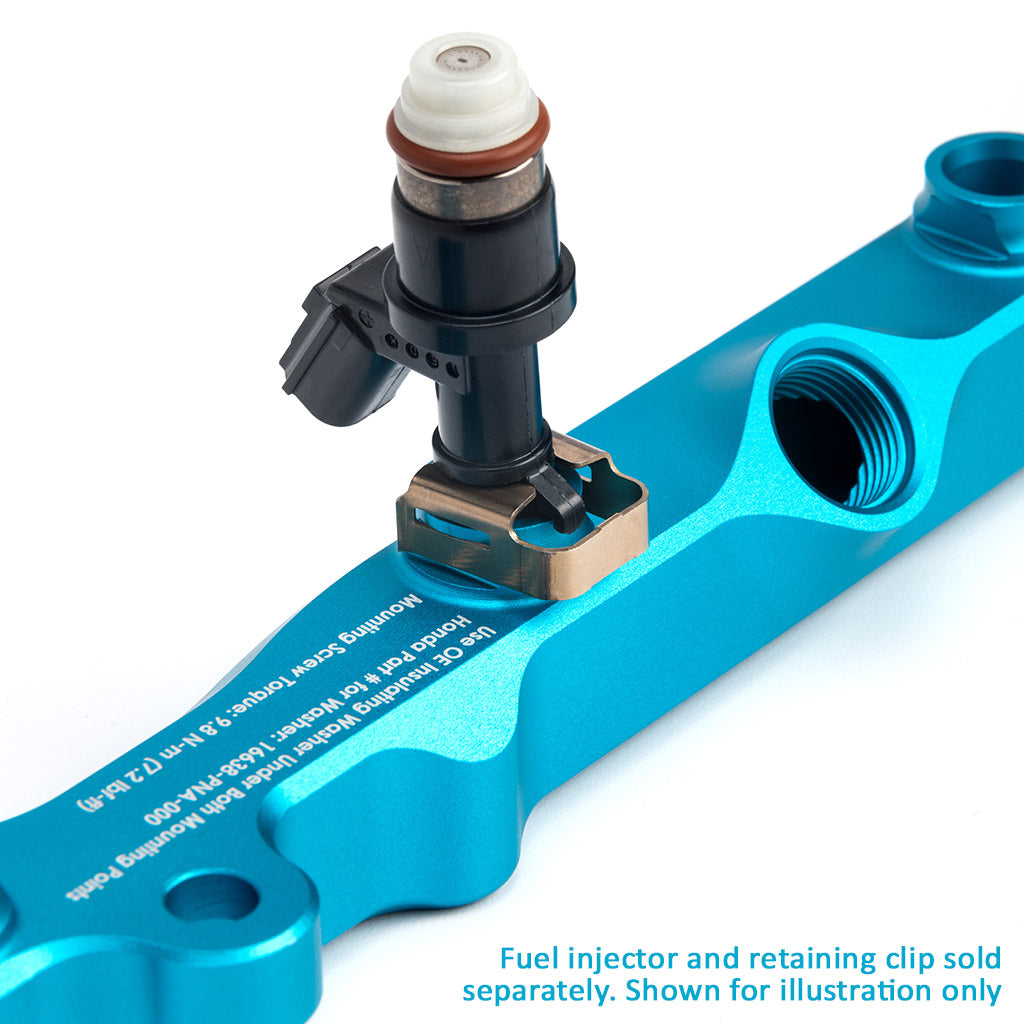

Design retains OEM injector mounting clips for extra peace of mind:



Fuel injector installed in k-series fuel rail

ACUiTY has made 6 unique fittings (sold separately) available for the rail to help you customize it exactly to your needs. The fittings are as follows:

  • 1913-F02: -8 ORB Plug
  • 1913-F03: -6AN adapter
  • 1913-F04: -8AN adapter
  • 1913-F05: 1/8 NPT adapter
  • 1913-F06: 5/16" Quick-Disconnect adapter, short
  • 1913-F07: 5/16" Quick-Disconnect adapter, long

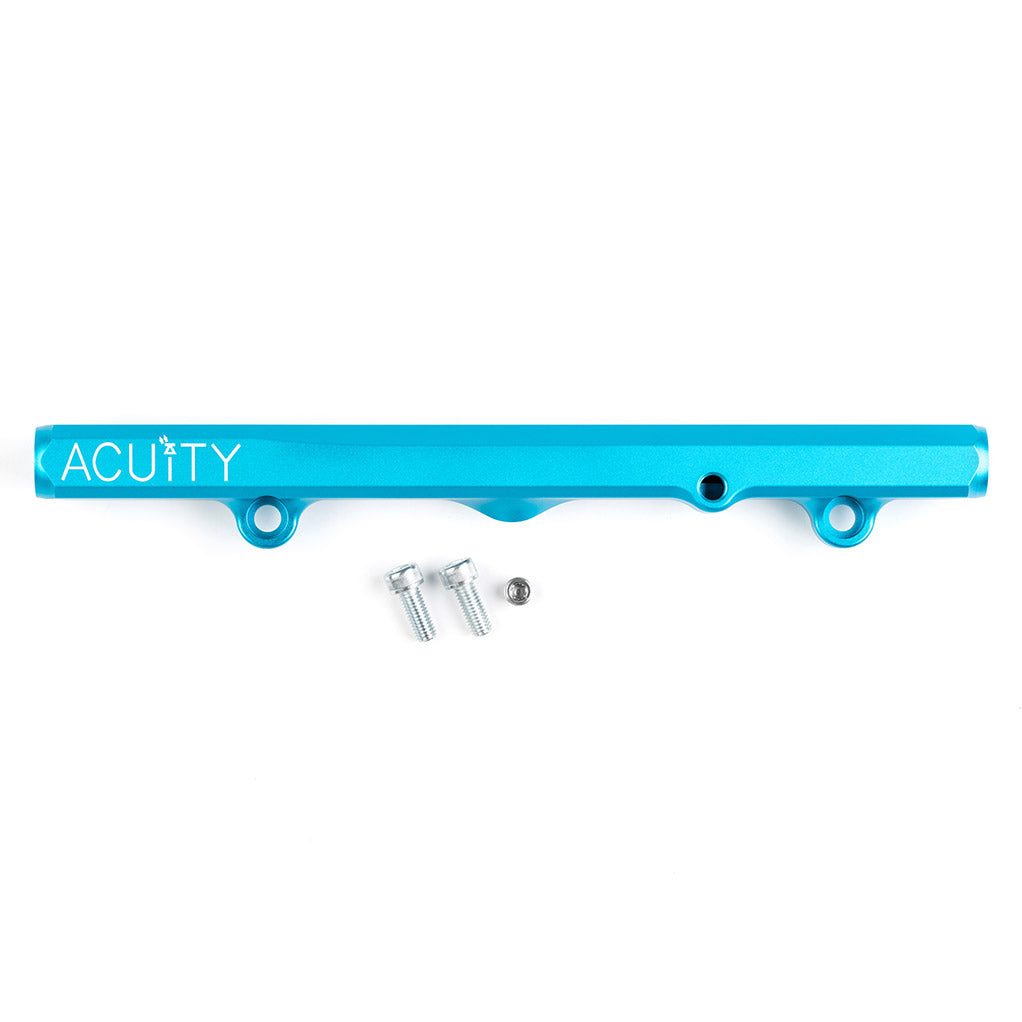

Kit Contents

Each kit includes:

  • 1x fuel rail
  • 2x class 10.9 mounting screws
  • 1x stainless steel 1/8 NPT plug.

You will need PTFE thread sealant (do not use teflon tape on fuel systems as it can foul injectors), and the appropriate fittings for your application. For a complete solution, see our application-specific fuel line kits.

Fitment Info

Fits most K-Series engines except for the direct-injected K20C and K20B engines

Fitting requirements vary based on application. Please see the application list and fitting requirements below:

  • 2001-2005 Civic Si and Type R
    2002-2006 Acura RSX, RSX-S, and Integra Type R
    2012-2015 Honda Civic Si
    • With OEM Fuel Line and side-mounted gauge
      (1x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F05 (1/8 NPT Adapter)
      (1x) 1913-F06 (5/16" Short Quick-Disconnect Adapter)
    • With OEM Fuel Line and top-mounted gauge or no-gauge
      (2x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F06 (5/16" Short Quick-Disconnect Adapter)
    • With -6AN center-feed or side-feed fuel lines and side-mounted gauge
      (1x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F03 (-6AN Adapter)
      (1x) 1913-F05 (1/8 NPT Adapter)
    • With -6AN center-feed or side-feed fuel lines and top-mounted gauge or no-gauge
      (2x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F03 (-6AN Adapter)
    • With -6AN return-style fuel lines
      (1x) 1913-F02 (-8 ORB Plugs)
      (2x) 1913-F03 (-6AN Adapter)
    • With -8AN return-style fuel lines
      (1x) 1913-F02 (-8 ORB Plugs)
      (2x) 1913-F04 (-8AN Adapter)
    • 2006-2011 Honda Civic Si and Type R
      • With OEM Fuel Line and side-mounted gauge
        (1x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F05 (1/8 NPT Adapter)
        (1x) 1913-F07 (5/16" Long Quick-Disconnect Adapter)
      • With OEM Fuel Line and top-mounted gauge or no-gauge
        (2x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F07 (5/16" Long Quick-Disconnect Adapter)
      • With -6AN center-feed or side-feed fuel lines and side-mounted gauge
        (1x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F03 (-6AN Adapter)
        (1x) 1913-F05 (1/8 NPT Adapter)
      • With -6AN center-feed or side-feed fuel lines and top-mounted gauge or no-gauge
        (2x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F03 (-6AN Adapter)
      • With -6AN return-style fuel lines
        (1x) 1913-F02 (-8 ORB Plugs)
        (2x) 1913-F03 (-6AN Adapter)
      • With -8AN return-style fuel lines
        (1x) 1913-F02 (-8 ORB Plugs)
        (2x) 1913-F04 (-8AN Adapter)
      • K-Swaps
        • With -6AN center-feed or side-feed fuel lines and side-mounted gauge
          (1x) 1913-F02 (-8 ORB Plugs)
          (1x) 1913-F03 (-6AN Adapter)
          (1x) 1913-F05 (1/8 NPT Adapter)
        • With -6AN center-feed or side-feed fuel lines and top-mounted gauge or no-gauge
          (2x) 1913-F02 (-8 ORB Plugs)
          (1x) 1913-F03 (-6AN Adapter)
        • With -6AN return-style fuel lines
          (1x) 1913-F02 (-8 ORB Plugs)
          (2x) 1913-F03 (-6AN Adapter)
        • With -8AN return-style fuel lines
          (1x) 1913-F02 (-8 ORB Plugs)
          (2x) 1913-F04 (-8AN Adapter)
      Install Guides

      Click Here for the 1913 Install Guide (Performed on an 8th Gen Honda Civic Si using OEM fuel line)

      *We are working on guides for the RSX-S and 9th Gen Si presently, but if you are installing on these applications in the meantime, note that the install process is nearly identical on these platforms as on the 8th Gen Civic Si, for which there is a guide above. If you have specific questions about your application and the install process, feel free to reach out to us using our Contact Us page.
